Product Code : 06
Product Description

Application :

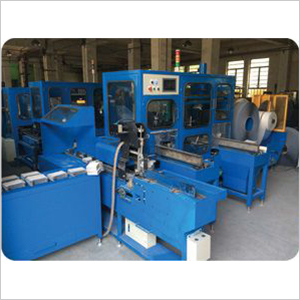

JHTD-BPE-02 Automatic Enveloping and stacking machine is specific machine for plate wrapping and coupling of car battery. It feeds material with PE roll to finish bagging, seal, piling and coupling automatically, Through the man-machine interface to set length of PE separator and coupling pieces that is easy and convenient. Auto material feeder is stable and reliable.

Technology Parameter :

  • Applicable specular battery plate
  • Production capacity : bagging 60-80pcs/min
  • Plate spec:
    • width:100-148mm
    • Height: 100-156mm
    • Thickness:1.2-2.5mm
  • Power consumption : 380VAC 3.5KW
  • Air consumption : 8L/min 7kgf/cm2
  • Dust vacuum requirement : 1.27m3/sec
  • Size : L5000 x W1700 x H17500 mm

Operating Process :

  • Convey PE material - Feed material with robot arm - Bagging and sealing - Piling plate - Coupling and conveying
