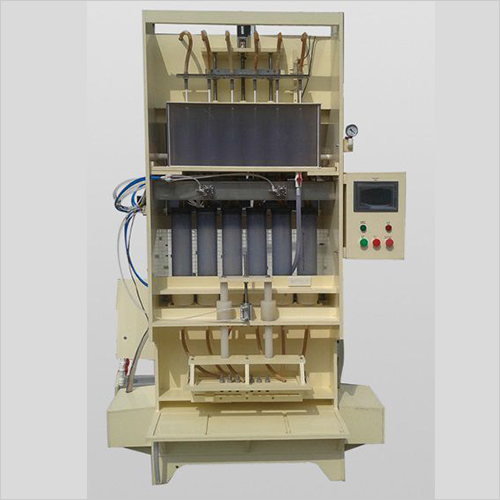

Micom Control Gel And Acid Vacuum Filler

Micom Control Gel And Acid Vacuum Filler
Micom Control Gel And Acid Vacuum Filler
Send Inquiry
Product Code : 03
Product Description

Application : This machine is applicable for filling the middle and large size lead-acid batteries.

Features :

  • This machine adopts PLC control and touch interface, is easy to use and works steady, good repeatability.
  • Precision Manufacturing, High degree of accuracy.
  • Acid proof, Alkali Proof, Long life performance.
  • It was fixed quantity by measuring cup and vacuum filling.
  • Using acid pump quantitative on the principle of self-priming. Fixed quantity fast and accurate.
  • Multi-tube synchronous & digital adjustment.
  • Digital Settings filling capacity.

Function :

  • Automatic and manual work mode
  • The user can be set filling time and vacuum times and adjust filling capacity freely.
  • The user can be set up various time parameter.

Technical Parameters :

  • Power Supply : 220V/50Hz
  • Air Supply : 0.4-0.6 Mpa
  • Vacuum : 0.06~-0.8 MPa
  • Acid filling accuracy : <+0.3%
  • Accuracy of each tube : <+0.3%
  • Speed : 120pcs/h (12V12Ah)

Specification :

Model

Max mL per each

Filling Mode

Size (mm)

mAH sphere of application mAH

W

D

H

JHTD-VAF1000mL x 6

1000mL

Measuring cup + vacuum

1200

800

2100

30~100 Ah

JHTD-VAF2000mL x 6

2000mL

1200

800

2300

45~200 Ah

JHTD-VAF2500mL x 6

2500mL

1200

800

2300

50~250 Ah

JHTD-VAF3000mL x 6

3000mL

1200

1000

2400

60~300 Ah

JHTD-VAF4000mL x 6

5000mL

1200

1000

2450

70~400 Ah
